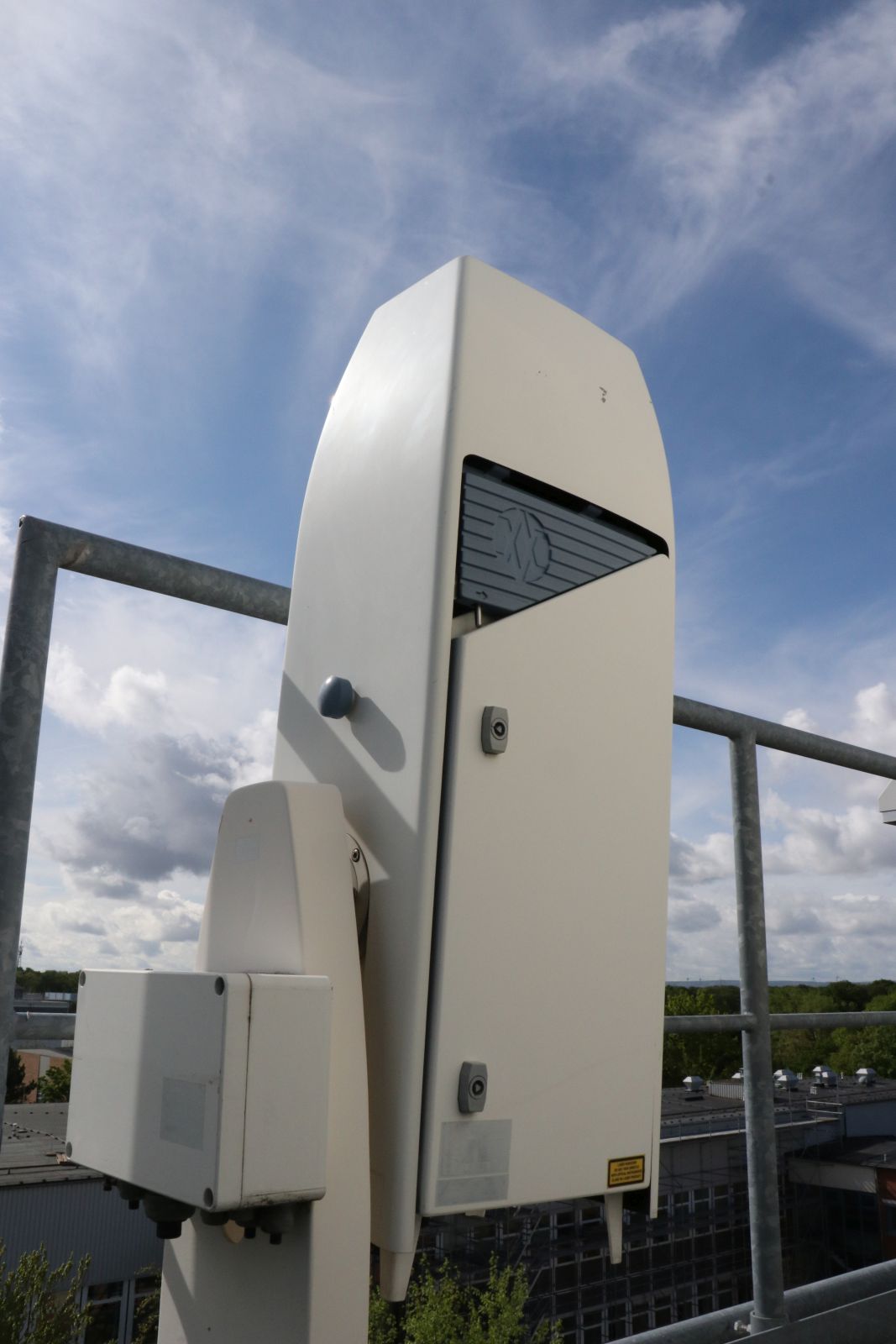

Vaisala CT25K Ceilometer
History
| Period | Place | Project |
|---|---|---|
| 03/2013 - today | Research Center Jülich, Germany | TR32 |
Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1064 nm |
| Bandwidth | 0.1 nm |
| Energy per pulse | 8µJ |
| Long-time stability over 12 month (prr) | < 10 % |
| Pulse to pulse variance of laser energy | < 3 % |
| Pulse duration | 1 … 5 ns |
| Pulse repetition rate (prr) | 5 - 7 kHz |
| Number of pulses per profile | 105650±1001) |
| Beam diameter | expanded to: 90 mm |
| Laser divergence | < 0.3 mrad |
| FOV Receiver | 0.45 mrad |
| range gate length | 15m |
| temporal resolution | 15sec |
| Voltage | 230VAC, +/- 10 % / 50 Hz |
| Max. power consumption | 0,8 kW (all heater are running) |
| Manufacturer | Jenoptik, today CHM15k is produced by Lufft |
1)
varies in time
